As one of the indispensable equipment in modern kitchens, stainless steel sinks are favored for their durability, hygiene, and beauty. However, if you are a distributor, building contractor, or kitchen brand owner, choosing a high-quality stainless steel kitchen sink involves a great deal of technical knowledge.
A wrong purchasing decision can lead to rusted inventory, collapsed countertops, and destroyed brand reputation. As a leading sink manufacturer, we are taking you behind the scenes to comprehensively understand the stainless steel sink market from the inside out. Here is your definitive factory guide to materials, thicknesses, manufacturing processes, and installation standards.
1.The Core Standard: Decoding Stainless Steel Grades
Not all stainless steel is created equal. There are obvious differences in composition, performance, price, and application scenarios among the 201, 304, and 316 materials commonly used in the industry.
201 Stainless Steel (The Budget Option)
This material is high in manganese (5.5-7.5%), low in nickel (3.5-5.5%), and contains about 16-18% chromium.
- The Pros: It offers a low material price, good processing ductility, and easy stamping forming.
- The Cons: It has poor corrosion resistance. In humid and salty environments (like coastal areas) or when in contact with acid and alkali substances (such as coffee and tea), it easily develops rust spots. Over long-term use, the surface easily oxidizes and fades, and the weld areas are highly prone to rust. Furthermore, due to the high manganese content, heavy metals may separate out at high temperatures.
- Best For: Dry inland areas, temporary rental housing, and scenarios that do not require high durability.
304 Stainless Steel (The Industry Standard)
Containing 8-10.5% nickel, 18-20% chromium, and ≤ 0.08% carbon, SUS304 is the golden standard.
- The Pros: It offers excellent corrosion resistance in general household kitchen environments against water, oil, and weak acids. It conforms to food-grade safety standards (like GB9684), making it safe for long-term food contact. It provides high cost performance, good welding performance, and supports various surface treatments like wire drawing and mirror finishes.
- The Cons: It is not entirely resistant to chloride ions; long-term exposure to high-concentration salt water or strong acids can still cause corrosion. The cost is typically 1.3-1.5 times that of 201 steel.
- Best For: Most family kitchens, restaurant back kitchens, and ordinary commercial environments. Factory Tip: 304 material is the most cost-effective choice, meeting the needs of 99% of families. Always request SGS/ROHS test reports and food-grade certifications (NSF/FDA).
316 Stainless Steel (The Premium Upgrade)
This premium grade contains 2-3% molybdenum, 10-14% nickel, and 16-18% chromium.
- The Pros: The addition of molybdenum remarkably improves acid, alkali, and chloride ion corrosion resistance. It boasts excellent high-temperature stability, a long service life in harsh environments, and a high sanitary grade commonly used in the medical and food industries.
- The Cons: It is expensive (1.5-2 times the cost of 304), has high hardness making it difficult to process and punch, and the market supply for residential sinks is relatively small.
- Best For: Coastal areas, high-end residential buildings, laboratories, and kitchens with frequent chemical contact.
2.Steel Plate Thickness and Load-Bearing Standards
Thickness dictates durability. For reference, handmade (welded) sinks are usually 0.8 to 1.2mm thick, while drawn (pressed) sinks range from 0.6 to 1.2mm. Here is our factory recommendation based on load-bearing needs:
- Catering Back Kitchen / Food Processing: Recommend 1.2-1.5mm thickness (Hand welding preferred) to support heavy loads of ≥200kg.
- Commercial Kitchen / Small Kitchen: Recommend 1.0-1.2mm thickness (Integrally stretched or manually welded) for loads between 150-200kg.
- Batch Development / Temporary Kitchen: Recommend 0.8-1.0mm thickness (Integral stretching) for standard loads of 100-150kg.

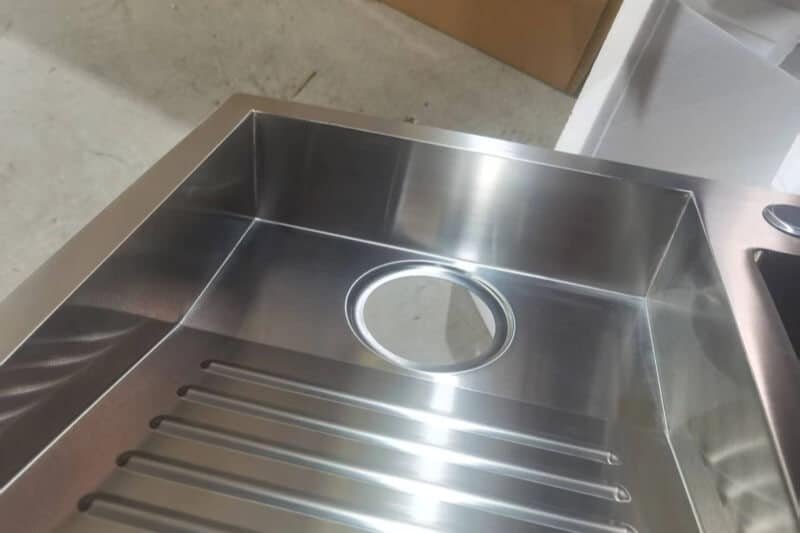

3.Manufacturing Processes: Stretched vs. Welded
- Integrally Stretched and Formed: Uses a template to punch the whole steel plate
. It features no welding seam, offering good leak-proof qualities and a larger R-angle
. It is ideal for budget-sensitive, high-volume purchases in the low-medium price range.
- Hand Welding: Involves manual or machine welding of the trough body and panel
. It allows for small R-angles, large capacity, and high aesthetic appeal
. While it requires fine grinding of burrs and increases costs, it is perfect for high-end kitchens and customized demands in the medium-high price range
- Laser Welding: Offers fine welding seams, high strength, and top-tier appearance for high-end brand displays.
- Crucial Note: Regardless of the process, the bottom of the tank must be designed with reinforcing ribs, which is the key to load-bearing.
4.Installation Modes and Accessory Standards
Choosing the right installation method affects both daily maintenance and visual appeal.
- Topmount (On the stage): The rim rests on the countertop
. It offers simple installation and easy maintenance, but the edge easily accumulates dirt
. Opening size = outer diameter + 5mm allowance.
- Undermount (Bench-down type): Embedded under the countertop
. The table top remains flat and easy to clean, ideal for high-end kitchens and food processing
. Opening size = inner diameter – 3mm. Installation clearance between sink and table should be ≤ 1mm.
- Flush Mount (Taichung style): The sink is completely flush with the countertop
. It offers high beauty but demands high installation accuracy (opening size = outer diameter ± 0.5mm)
- Accessories: Always ensure the use of food-grade silicone sealant (resistant to high temperature and mildew), stainless steel snaps/bolts, and highly corrosion-resistant sewer pipes with steel ball positioning and extrusion sealing. Countertops must have sufficient bearing capacity (Stone ≥ 20mm, Artificial stone ≥ 30mm).

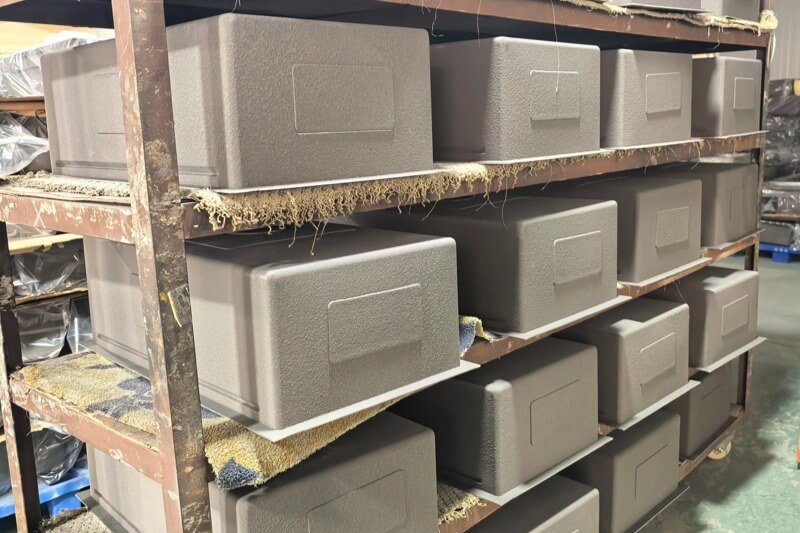

5.Surface Treatments and The PVD Nano Revolution
- Wire Drawing Process (Mainstream): The surface is drawn with an abrasive belt to form a uniform filamentous texture. It is scratch-resistant, anti-fingerprint, and doesn’t show water stains easily. Acceptance criteria: the silk lines must be consistent without random or broken lines, free of pits, with an even matte gloss.
- Embossing Process: Patterns (like flame or honeycomb) are pressed into the surface. It is highly anti-skid and beautiful, but if the embossing is too deep, it can accumulate dirt and become difficult to clean
- The Latest PVD Nano Coating Process: This is the pinnacle of modern sink finishing. The cleaned sink is fixed on a working frame and sent into a vacuum coating machine. Using arc photoelectric technology, an arc discharge combines with reaction gas to attach a molecular film layer to the sink’s surface. Next, a nano spray gun seals the glaze, and the sink is baked for 30 minutes to accelerate adhesion. The result? A dignified finish available in gun gray, gold, and black that is incredibly scratch-resistant, wear-resistant, oil-resistant, and hydrophobic.
6.Golden Sizing Trends for Kitchen Design
When planning inventory, stick to these mainstream mature parameters:
- 880x480mm (Depth 240mm): The large double slot. The main specification for the high-end market. Requires a countertop width of 700mm+ and pairs best with high-flow, high-throw faucets.
- 810x470mm (Depth 220mm): The classic home “Gold Size” double groove. Always confirm the compatibility of accessories like basin-in-basin and draining baskets.
- 750x480mm (Depth 230mm): The large single slot representing modern kitchen trends. Usually configured with a movable draining basket or chopping board to improve functionality.
- 600x450mm (Depth 200mm): The small apartment standard. Because the groove body is small, the thickness must be ≥ 0.8mm to prevent deformation.
7.Scenario-Based Selection Recommendations
To help you make the best procurement decisions, here are our factory-recommended product portfolios:
- Food Processing Plants: Standard model | 1.2mm manual welding | Undermount | Brushed or embossed finish (Highest hygiene requirements).
- Ordinary Catering Kitchens: Standard model | 1.0-1.2mm integral stretching | Undermount or Flush | Brushed finish (Balances cost and hygiene).
- Central Kitchens: Standard model | 1.2mm integral stretching | Undermount | Brushed finish (High volume, high cost performance).
- Wholesale Display: Basic model | 0.8mm integral stretching | Topmount | Brushed or embossed finish (Cost-sensitive).
- Custom Kitchens / 5-Star Hotels: High-end model (large single slot + nano coating + silent system + quick drainage) | 1.2mm manual welding | Flush mount | Fine wiredrawing (Meets luxury demands).
